Architectural Drafting Services– Perth, WA
AppleLeaf Interiors provides professional Architectural Drafting and Interior Documentation Services for renovations across Perth, Western Australia. Our drafting supports homeowners, builders and trades by translating design intent into clear technical drawings — improving accuracy, reducing site errors and creating smoother construction outcomes.
From joinery documentation through to elevations and detailed schedules, our drawings are produced to support high-end renovation delivery and ensure your project is properly planned before work begins on site.
Drafting for Renovations & Interior Documentation
Drafting and documentation deliverables may include:
Renovations require detailed documentation to ensure spaces are functional, joinery fits correctly, and finishes are aligned across trades. AppleLeaf Interiors prepares drafting packages that focus on interior construction detail, with a strong emphasis on cabinetry, layout planning, and build-ready information.

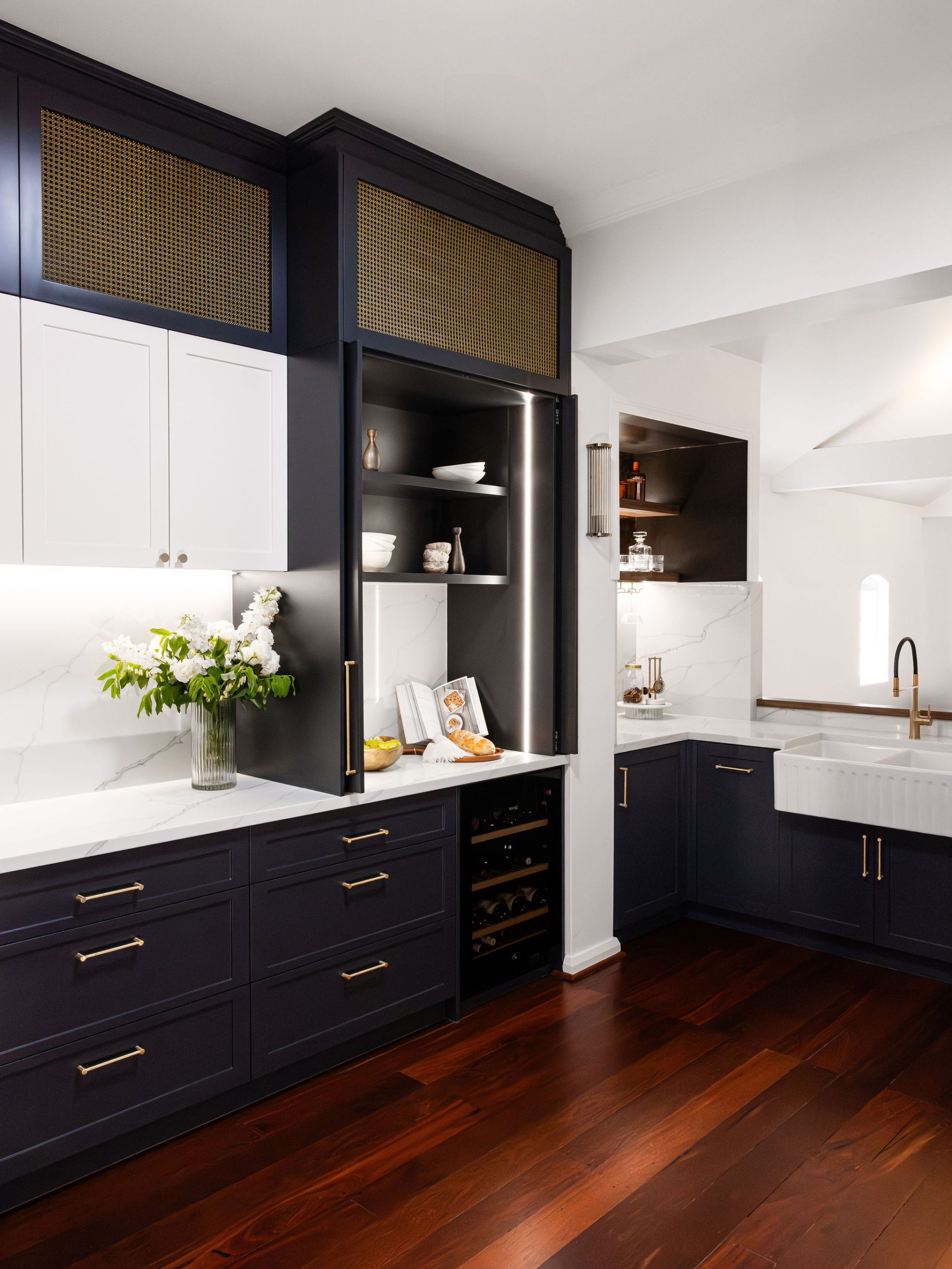

Our drafting services are ideal for kitchens, bathrooms, laundries, wardrobes, living spaces and full home renovations where clarity and detail are essential.
Why Professional Drafting Matters
Quality drafting is the bridge between concept design and construction. Accurate documentation helps:
- Reduce costly mistakes and variations onsite
- Support accurate quoting from builders and cabinetmakers
- Improve trade coordination
- Ensure cabinetry, clearances and functionality are correct
- Speed up procurement and decision-making
The Process
Meeting One – Measurements
We will do a site visit for final measurements and additional ideas you may have. We will also discuss your budget and timeframe considerations. Once we have those details, we will get busy creating 2-3 floorplans for you to choose from.
Meeting Two – Design Layout Decisions
Between our first meeting and second we will be busy creating design options for you. 2-3 floorplan layout options will be presented at the second meeting to choose from or combine elements of each.

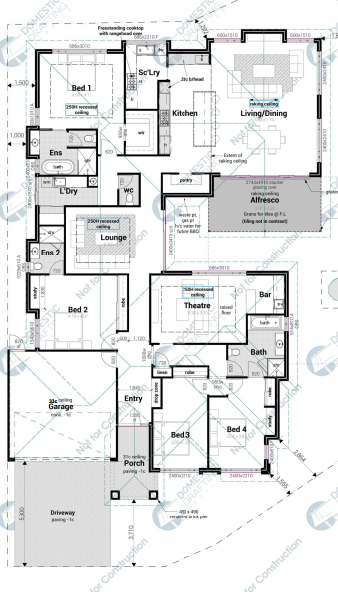

Once the design has been finalised, it will be drawn up (using CADD) including:
- Floor plan
- Elevations
- Lighting Plan
Meeting Three – Selections
Our third meeting includes the selection and specification of all fittings, fixtures and finishes as required. Here you’ll be choosing all the materials that make your project one-of-a-kind. They will include items such as the benchtop material, joinery finish, sinks, tapware, splashback, flooring etc. This will be a half day excursion shopping trip with me in Perth.
Meeting Four – Project Ready Details
In our fourth meeting, you will now be presented with the final set of A3 drawings, a 3Dview and the corresponding selections list. We will discuss the final selections list inclusive of costings and labour prices that have been obtained (if applicable). When we have finalised all design queries and final prices, the project will be ready to proceed.
The project can be executed by you or with AppleLeaf Interiors Design Management Service (pricing on request)
Design Management
If you are proceeding with AppleLeaf Design’s Management Service, here is where we discuss final paperwork, discuss start dates and expected time frames for the completed project. We will work closely with the builder, tradespeople and suppliers involved throughout the duration of the job, as per our design management service. We will also keep track of the budget throughout the renovation.
If you would like to proceed with design management, AppleLeaf Interiors will arrange to meet with our selected builder at the deemed project site to obtain a labour quote. AppleLeaf Interiors works only with qualified and reputable tradespeople curated across 15+ years in the industry.
